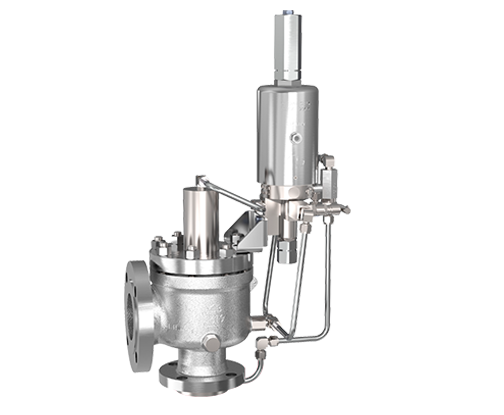

Safety Valve Model POV 64

Performance Features

Sizes from 1” x 2” to 12” x 16” (25mm x 50mm to 300mm x 400mm)
Suitable for all overpressure process applications requiring a flanged connection and a re-closeable relief technology
Set Pressure available from 15 to 35,000 psig
Continuous processing (automatic spring reset to continue operation)
Suitable Hazardous service
ASME “UV” stamped, section XIII
European Pressure Equipment Directive “CE” marked

Request a Quote

Set Pressures
Materials
Accessories/Connections
Documentation

Set Pressures

POV 64™ Capabilities

Inlet Size	Outlet Size	Flow Area	Orifice (Designator) Diameter	Lift	Set Pressure Range	Media
1 - 1.5 NPS	2, 3 NPS	0.122 sq in	[D] 0.394 in	0.157 in	15-6004 psi	Air
1 - 1.5 NPS	2, 3 NPS	0.122 sq in	[D] 0.394 in	0.157 in	15-2900 psi	Steam
1 - 1.5 NPS	2, 3 NPS	0.222 sq in	[E] 0.531 in	0.157 in	15-6004 psi	Air
1 - 1.5 NPS	2, 3 NPS	0.222 sq in	[E] 0.531 in	0.157 in	15-2900 psi	Steam
1.5 NPS	2, 3 NPS	0.352 sq in	[F] 0.669 in	0.276 in	15-5003 psi	Air
1.5 NPS	2, 3 NPS	0.352 sq in	[F] 0.669 in	0.276 in	15-2900 psi	Steam
1.5 - 2 NPS	3 NPS	0.563 sq in	[G] 0.846 in	0.354 in	15-3698 psi	Air
1.5 - 2 NPS	3 NPS	0.563 sq in	[G] 0.846 in	0.354 in	15-2900 psi	Steam
1.5 - 2 NPS	3 NPS	0.887 sq in	[H] 1.063 in	0.433 in	15-2755 psi	Air
1.5 - 2 NPS	3 NPS	0.887 sq in	[H] 1.063 in	0.433 in	15-2775 psi	Steam
2 - 3 NPS	3, 4 NPS	1.407 sq in	[J] 1.339 in	0.512 in	15-2697 psi	Air
2 - 3 NPS	3, 4 NPS	1.407 sq in	[J] 1.339 in	0.512 in	15-2697 psi	Steam
3 NPS	4, 6 NPS	2.046 sq in	[K] 1.614 in	0.551 in	15-2219 psi	Air
3 NPS	4, 6 NPS	2.046 sq in	[K] 1.614 in	0.551 in	15-2219 psi	Steam
3 - 4 NPS	4, 6 NPS	3.166 sq in	[L] 2.008 in	0.63 in	15-1494 psi	Air
3 - 4 NPS	4, 6 NPS	3.166 sq in	[L] 2.008 in	0.63 in	15-1494 psi	Steam
4 NPS	6 NPS	4.025 sq in	[M] 2.264 in	0.748 in	15-1102 psi	Air
4 NPS	6 NPS	4.025 sq in	[M] 2.264 in	0.748 in	15-1102 psi	Steam
4 NPS	6 NPS	4.986 sq in	[N] 2.52 in	0.787 in	15-1001 psi	Air
4 NPS	6 NPS	4.986 sq in	[N] 2.52 in	0.787 in	15-1001 psi	Steam
4 NPS	6 NPS	7.218 sq in	[P] 3.031 in	0.945 in	15-1001 psi	Air
4 NPS	6 NPS	7.218 sq in	[P] 3.031 in	0.945 in	15-1001 psi	Steam
6 NPS	8 NPS	12.174 sq in	[Q] 3.937 in	1.181 in	15-595 psi	Air
6 NPS	8 NPS	12.174 sq in	[Q] 3.937 in	1.181 in	15-595 psi	Steam
6 NPS	8, 10 NPS	17.53 sq in	[R] 4.724 in	1.339 in	15-305 psi	Air
6 NPS	8, 10 NPS	17.53 sq in	[R] 4.724 in	1.339 in	15-305 psi	Steam
8 NPS	10 NPS	28.497 sq in	[T] 6.024 in	1.654 in	15-305 psi	Air
8 NPS	10 NPS	28.497 sq in	[T] 6.024 in	1.654 in	15-305 psi	Steam

Inlet Size	Outlet Size	Flow Area	Orifice (Designator) Diameter	Lift	Set Pressure Range	Media
1 - 1.5 NPS	2, 3 NPS	0.122 sq in	[D] 0.394 in	0.071 in	15-6004 psi	Water
1 - 1.5 NPS	2, 3 NPS	0.222 sq in	[E] 0.531 in	0.209 in	15-6004 psi	Water
1.5 NPS	2, 3 NPS	0.362 sq in	[F] 0.669 in	0.26 in	15-5003 psi	Water
1.5 - 2 NPS	3 NPS	0.563 sq in	[G] 0.846 in	0.394 in	15-3698 psi	Water
1.5 - 2 NPS	3 NPS	0.887 sq in	[H] 1.063 in	0.512 in	15-2755 psi	Water
2 - 3 NPS	3, 4 NPS	1.407 sq in	[J] 1.338 in	0.551 in	15-2697 psi	Water
3 NPS	4, 6 NPS	2.046 sq in	[K] 1.614 in	0.63 in	15-2219 psi	Water
3 - 4 NPS	4, 6 NPS	3.166 sq in	[L] 2.008 in	0.787 in	15-1494 psi	Water
4 NPS	6 NPS	4.025 sq in	[M] 2.264 in	0.866 in	15-1102 psi	Water
4 NPS	6 NPS	4.986 sq in	[N] 2.52 in	0.906 in	15-1001 psi	Water
4 NPS	6 NPS	7.218 sq in	[P] 3.031 in	1.102 in	15-1001 psi	Water
6 NPS	8 NPS	12.174 sq in	[Q] 3.937 in	1.22 in	15-595 psi	Water
6 NPS	8, 10 NPS	17.53 sq in	[R] 4.724 in	1.535 in	15-305 psi	Water
8 NPS	10 NPS	28.497 sq in	[T] 6.024 in	1.929 in	15-305 psi	Water
